CATALOGO BASICO - CAHO |
||||
 |
 |
 |
 |
 |

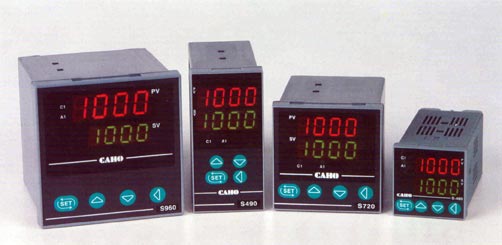

DIGITAL-SIMPLE
TEMPERATURE
CONTROLLER |
||||
DIGITAL-SIMPLE
TEMPERATURE
CONTROLLER |
|
 |
|
| FEATURES | SPECIFICATION |
| 1. 1/4, 1/8, 1/16 DIN Sizes. 2. Varlous Thermocouple Input selectable and RTD. 3. One-point alarm, with 22 alarm modes. 4. Sensor Break display indication, "oPEn" 5. Function of SMART TEMPERATURE TRANSDUCER 6. Program Lock can be set 7. °C or °F Option 8. Internally mounted Timer |
Power Supply: AC 85V˜265V, 50/60 HZ Input: K, J, Pt, R, S, N, T, E, B, DC linear Output: RELAY(250V/5A), DC24V, DC linear Control: P, ON/OFF P Band: 0%-200% full Scale Cycle Time: 0-100 Sec. Accuracy: ±t0.3% Full Scale Ambient Temperature: -10 °C˜55 °C Power Consumption: Less than 5VA Input Impedance: 20M ohm 500V DC High/Low Alarm: 22 alarm modes |

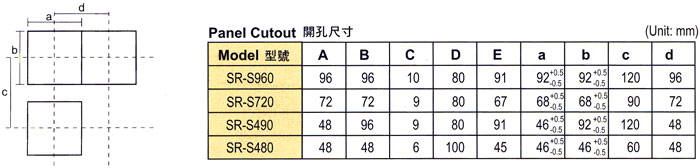

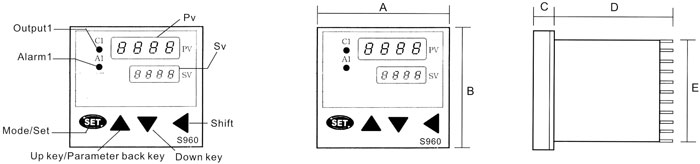

| DIMENSIÓN | |
 |
|
 |
|

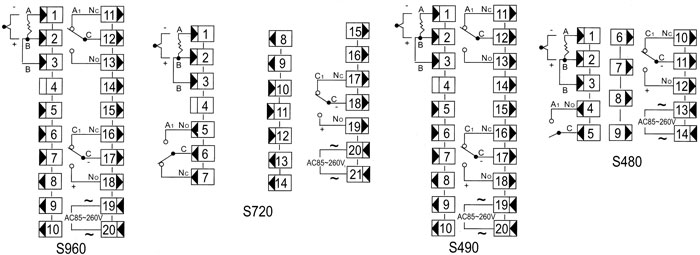

| WIRING DIAGRAM | |
 |
|

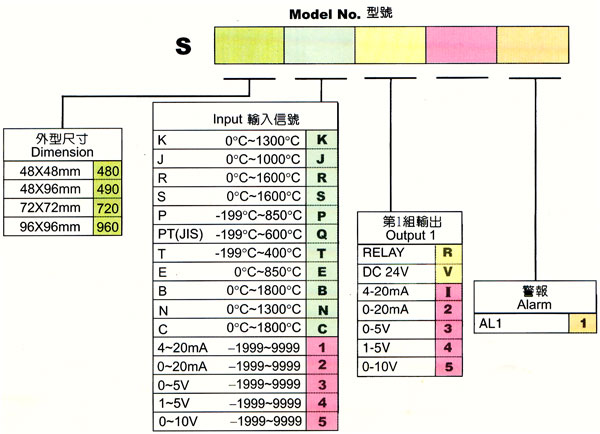

| ORDERING CODE | |
 |
|
  |
|||||
 |
 |
 |
 |
 |
 |
 |
