CATALOGO BASICO - CAHO |
||||
 |
 |
 |
 |
 |

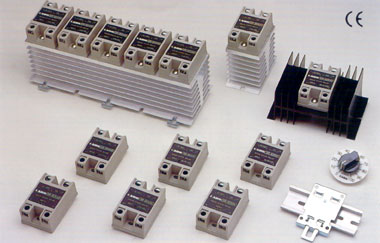

SOLID STATE RELAY |
||||
SOLID STATE RELAY |
 |
| FEATURES |
| 1. Load current ranges from 10 to 40 Amps. 2. Internally mounted snubber circuit protection for huge current (dv/dt) application 3. Zero Crossing turn-on, Zero current turn-off. 4. With LEO display to detect the operating of devices. 5. Photo-isolation, 4000V Rms isolation. 6. R SERIES have output power 0-90% 7. Ambient Temperature:-1 O-55' C 8. Weight: 70g |

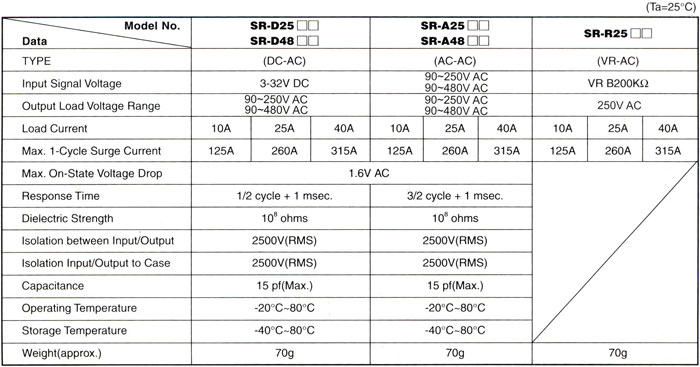

| SPECIFICATIONS |
 |

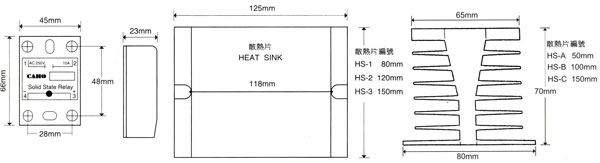

| DIMENSIÓN |
 |

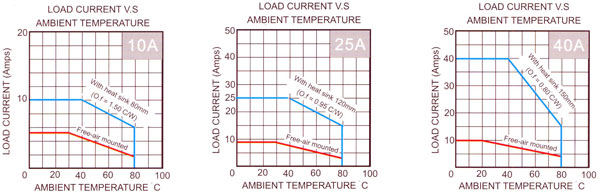

| CHARACTERISTIC CURVES |
 |

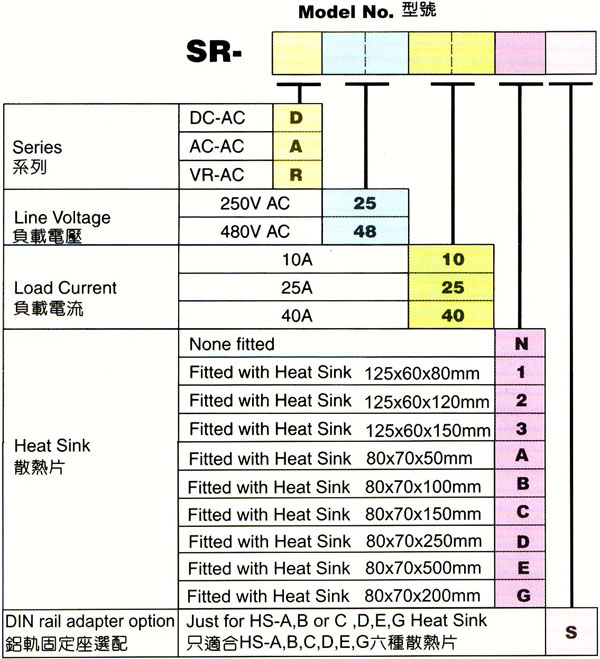

| ORDERING CODE |
 |
 |
  |
|||||
 |
 |
 |
 |
 |
 |
 |
