CATALOGO BASICO - CAHO |
||||
 |
 |
 |
 |
 |
SOLID STATE
RELAY (LARGE CURRENT) |
||||

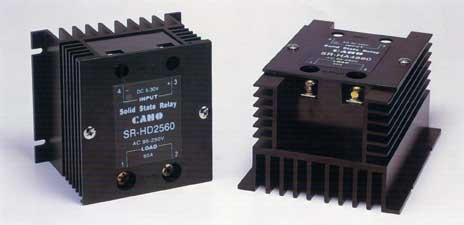

SOLID STATE RELAY
(LARGE CURRENT 40A 80A) |
 |
| FEATURES |
| 1. Load current ranges from 40 to 80 Amps. 2. Internally mounted snubber circuit protection for huge current (dv/dt) application. 3. Zero Crossing turn-on, Zero current turn-off. 4. With LEO display to detect the operating of devices. 5. Photo-isolation, 4000V Rms isolation. 6. HR SERIES have output power 0-90% 7. Ambient Temperature:-1 O-SS" C 8. Weight:1.3kg |

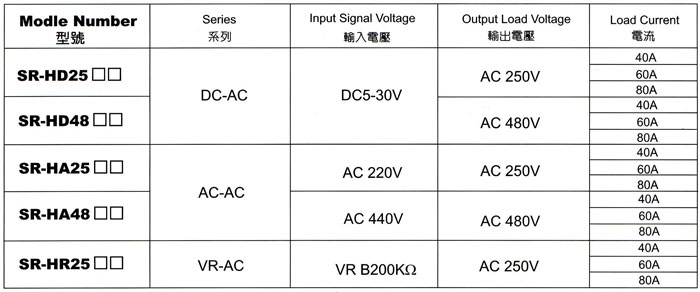

| SPECIFICATIONS |
 |

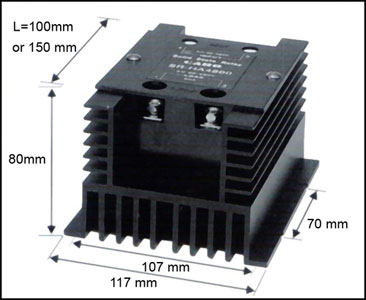

| DIMENSIÓN |
 |

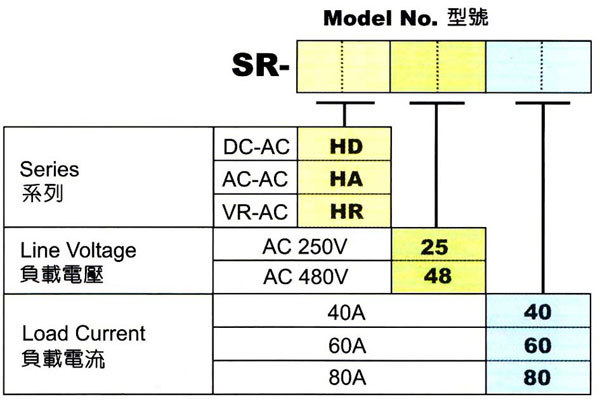

| ORDERING CODE |
 |

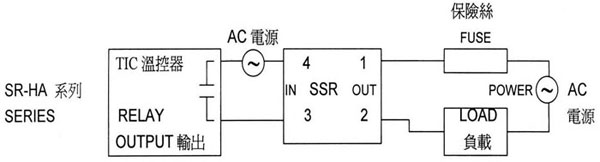

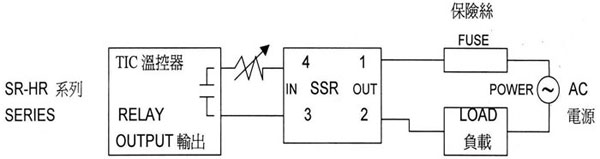

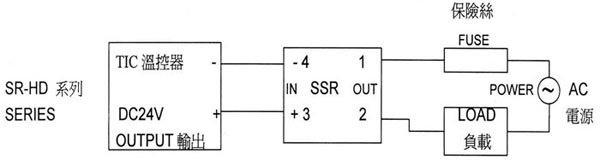

| S.S.R. SINGLE PHASE WIRING EXAMPLE |
 |
 |
 |
| 3 PHASE WIRING EXAMPLE |
 |
  |
|||||
 |
 |
 |
 |
 |
 |
 |
