HAND VALVES

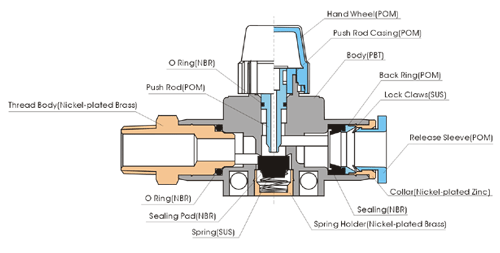

The hand valves are designed to turn on and off the airflow.
TWo-way and three-way valves are available for all models.
Three-way directional control valve releases the residual internal pressure on the Output side when manually closed
G-Thread type also available.



Fluid Type
Air (No other type of gas or liquid)
Working Pressure Range 0~150PSI 0~9.9KgF/cm2(0~990KPa)
Negative Pressure -29.5 in Hg -750mm Hg(10 Torr)
Working Temperature 32~140°F 0-60℃

  HVFF
MODEL(φD1-φD2)
Tube(Metric)-Tube(metric)
HVFF 06-06
HVFF 08-06
HVFF 08-08
HVFF 10-08
HVFF 10-10
HVFF 12-10
HVFF 12-12
